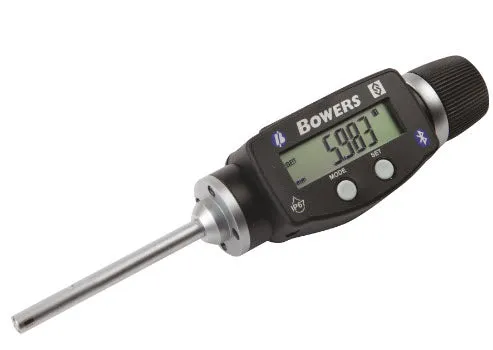

• Erg5 Electronics
• Simple 2-button operation
• 4 pre-set memories
• Range 2-300mm (0.080” – 12”)
• 2-6mm 2 point/ 6-300mm 3 point measurement
• Resolution 0.001mm/0.00005”
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement from 2mm – 6mm and above 12.5mm (0.500”)
• Extensions available above 6mm for deep hole measurement
• Ratchet stop to ensure consistent measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings and gauges
• Serial number on all digital readouts and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN 863, part 4
• Supplied in fitted wooden case

All images are for representation only.
